UNO-1172A/AE
Intel
®
Atom
™
D510 DIN-rail PCs
with 3 x LAN, 2 x COM, VGA,
Mini PCIe, PC/104+
Specifications
General
Certification CE, FCC Class A, UL, CCC
Dimension (W x H x D) UNO-1172A: 85.5 x 152 x 139 mm (3.4" x 6" x 5.5")
UNO-1172AE: 111 x 152 x 139 mm (4.4" x 6" x 5.5")
Enclosure Aluminum + SECC
Mounting DIN-rail, Wallmount
Power Consumption 24 W (Typical)
Power Requirement 10 ~ 36 V
DC
(e.g +24 V @ 2 A) (Min. 48 W), AT/ATX
power mode by Jumper selection and BIOS AT simulation
(support system reboot automatically after power recovery)
Weight UNO-1172A: 1.6 kg
UNO-1172AE: 2.0 kg
OS Support WES Windows XP Embedded, Windows XP & Windows 7,
Windows CE 5.0/6.0, Linux, QNX
System Design Fanless design with no internal cabling
Remote Management Built-in Advantech DiagAnywhere agent on Windows CE /
XPe
System Hardware
CPU Intel Atom D510 1.66GHz
Memory 2GB DDR2 SDRAM built-in
Battery Backup SRAM 1 MB
Indicators System:LEDs for Power, CF, LAN (Active, Status), Serial
(Tx, Rx), Diagnosis /Alarm: over system temperature, over
voltage, alarm for battery backup SRAM, alarm for RTC
battery,Programmable(while disable Serial Tx&Rx), Buzzer
for Diagnosis (programmable)
Keyboard/Mouse 1 x PS/2
Storage SSD: 1 x internal type I/II CompactFlash slot
HDD: one 2.5" SATA HDD bracket
PC/104 Slot 2 x PC/104+ slot, supports 3.3 V & +5 V
(Only for UNO-1172AE, one PC/104+ with HDD)
Mini PCI 1 x Mini PCI (UNO-1172AE)
Display DB15 VGA connector, 1600x1200 @ 85 Hz
Audio 5.1 channel HD Audio, Mic in, Line in, Line out
Watchdog Timer Programmable 7-tier event handler, from 1 to 255 seconds
for each tier
Mini PCIe 1 x Mini PCIe
I/O Interface
Serial Ports 2 x RS-232/422/485 with DB9 connectors,Automatic
RS-485 data flow control
2 x RS-232 (Optional, pin header)
Serial Port Speed RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 115.2 kbps (Max)
LAN 3 x 10/100/1000 Base-T RJ-45 ports (supports Wake on
LAN, Teaming, built-in boot ROM, and IEEE1588 hardware
support)
USB 4 x USB, EHCI, Rev. 2.0 compliant
Digital Output 8-ch DO- 200 mA max/channel sink current
- Keep output status after system hot reset
- 5 ~ 40 V
DC
output range and 10 kHz speed
System Diagnoses Output: over system temperature, over voltage, battery
power fail, power status
Input: Power On/Off, Reset
Environment
Operating Temperature (IEC 60068-2-2, 100% CPU/ I/O loading)
-10 ~ 65° C (-4 ~ 149° F)
Storage Temperature -20 ~ 80° C (-4 ~ 176° F)
Operating Humidity 20 ~ 95% (non-condensing)
Storage Humidity 0 ~ 95% (non-condensing)
Shock Protection IEC 60068-2-27
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
Vibration Protection IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
Ordering Information
UNO-1172A-A33E Atom D510 1.66GHz, 2GB RAM DIN-rail PC
UNO-1172AE-A33E Atom D510 1.66GHz, 2GB RAM DIN-rail PC w/ PC/104+
Accessories
UNO-FPM11-BE UNO-1100 Series VESA Mount Kit
PCLS-DIAGAW10 Advantech Remote Monitoring & Diagnosis Utility
Onboard Intel Atom D510 1.66 GHz processor
Onboard 1 MB battery-backup SRAM
Onboard system & I/O LED indicators
System diagnosis through LED and digital output, remote power control
through digital input
Two RS-232/422/485 ports with automatic flow control
Three 10/100/1000 Base-T RJ-45 ports with teaming function support
4 x external USB
PC/104+ expansion slots option
1 x Mini PCIe slot for WLAN card and Fieldbus card
Windows
®
7, Windows CE, XP Embedded and Linux support
Supports Boot from LAN function
Fanless design with no internal cabling
Isolation between chassis and power ground
Introduction
UNO-1172A/AE are Intel Atom DIN-rail PCs with innovated system diagnostic features. The system diagnosis and remote power control through digital input lines enable users to
control and monitor system status remotely. They also provide alarm notices including over temperature, over voltage, battery power fail, power status on both system onboard LED
and digital output. Three Gigabit Ethernet interfaces with teaming function support allow users to uplink two ports with data transmit fault tolerance and downlink one port to field
devices. Their compact size, small foot print, front accessible I/Os allow convenient wiring and easy installation in field cabinets as well.

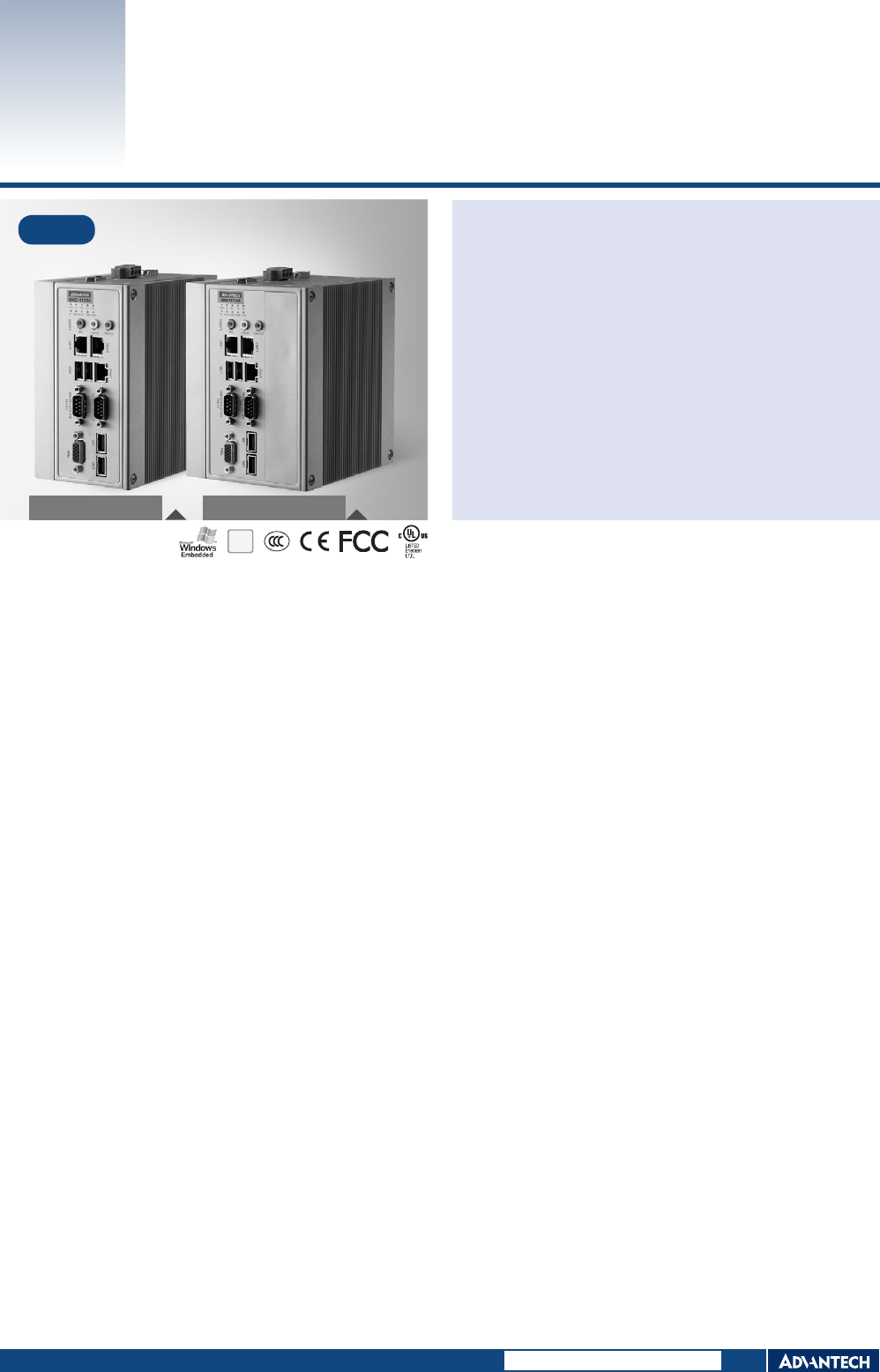

UNO-1172A UNO-1172AE
